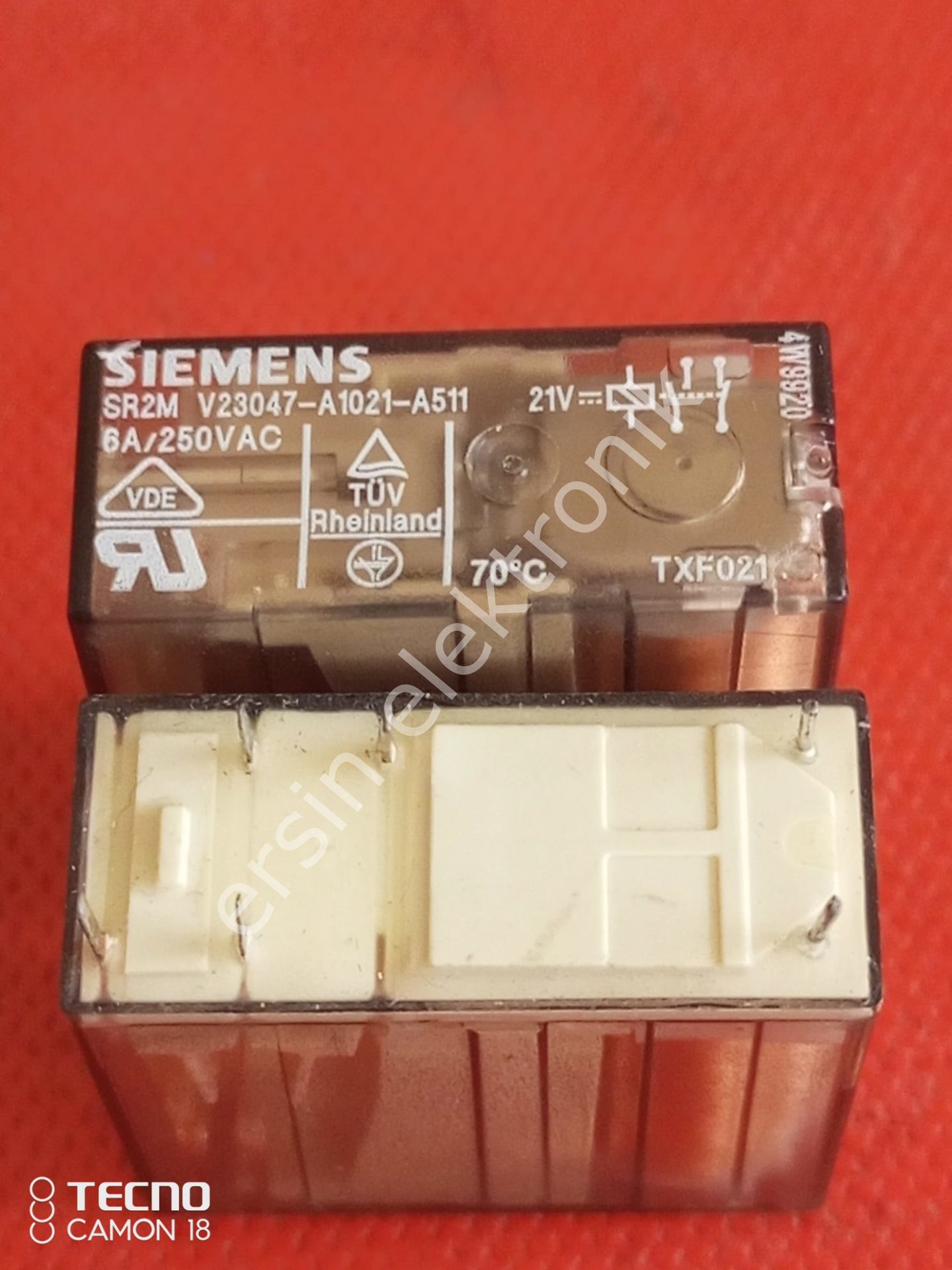

V23047-A1021-A511 (21V) / Siemens Röle
Kategori
Marka
Stok Kodu
K140801008
Fiyat
9,00 USD + KDV
62,13 TL den başlayan taksitlerle!!
348,47 TL
V23047-A1021-A511 (21VDC, 700mW, 33,3mA) ; Force Guided Relay SR2M
| Datasheets | SR2M Series |
|---|---|
| Product Photos | V23047-A1110-A501 |
Standard Package  |
20 |
| Category | Relays |
| Family | Power Relays, Over 2 Amps |
| Series | SR2M, SCHRACK |
| Packaging |
Bulk |
| Relay Type | Safety |
| Coil Type | Non Latching |
| Coil Current | 33.3mA |
| Coil Voltage | 21VDC |
| Contact Form | DPST-NO/NC (1 Form A and B) |
| Contact Rating (Current) | 6A |
| Switching Voltage | 400VAC - Max |
| Turn On Voltage (Max) | 15.8 VDC |
| Turn Off Voltage (Min) | 2.1 VDC |
| Operate Time | - |
| Release Time | - |
| Features | Sealed - Fully |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Contact Material | Silver Nickel (AgNi) |
| Coil Power | 700 mW |
| Coil Resistance | 630 Ohms |
| Operating Temperature | -25°C ~ 70°C |
| Dynamic Catalog | SR2M, SCHRACK Series |
Bu ürüne ilk yorumu siz yapın!
