Kablosuz P10 Panel Kontrol Kartı BX-5A1&WIFI

The initiated one for WIFI wireless cluster controller on the field of LED display screen!
The latest project and product must lead the market once again.

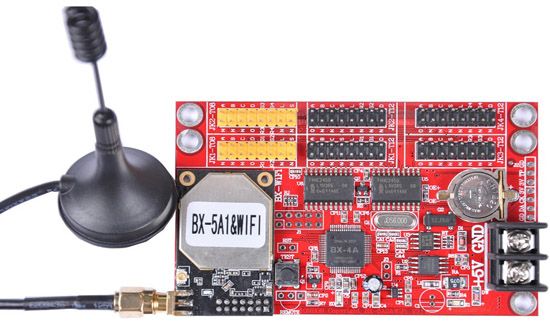

BX-5A1&WIFI wireless cluster LED controller is perfectly clustered with BX-5A1 and BX-WIFI wireless communication module.With stable performance and convenient structure installation. Absolutely, it will promote and lead the field of LED display screen WIFI wireless network techniques to get a speed development by it's good performance,best quality and prices.

Features
Best techniques and quality;
Anti terrible environment; Support wide work temperature: -30℃～70℃；
Support firmware update online;

Advantages
1. Support 100M Ethernet, easy to install and use;
2. Fast speed of data transferring, which is stable and reliable;
3. Wide applied range:
(1) Laptop worked within 100M; Desktop could work by wireless router connecting with BX-5A1&WIFI wireless controller communication.
(2) All places covered  well by  wireless WIFI signal like: airports, high-speed-train stations, intelligent building and so on.

Technique parameters
Product name: BX-5A1&WIFI wireless controller
Recommend index: ★★★★★
Product status: Being brought to market in March 2012, always in stores;
Performance index: Controlling performance parameters are equal to BX-5A1;
Main functions: Data wireless transparent transmitting;
                          Support 100M Ethernet;
                          Support TCP/IP/UDP network
                          Support wireless router/bridge connection model network structure;
                          Support 802.11b/g/n wireless standard;
                          Support heartbeat signal, WIFI connecting indication;
Maximum power: ≤2.5W
Receiving sensitivity: （802.11b：-89dBm，802.11g：-81dBm，802.11n：-71dBm）
Maximum transferring distance : ≤200M  ( Suggesting the distance: ≤100M
Wireless standard: 802.11 b/g/n
Work RF: 2.412GHz-2.484GHz
Antenna: 2.4GHz standard flake antenna
Work voltage: 5V (3.5V-6V)
Work temperature: -30℃～70℃

Application Specification
1. The latest product with high performance price; Compact structure, exquisite workmanship, simple and fast to installation;
2. Users should better adopt a proper waterproof protection when in the outdoor;
3. Pay more attention to the place for antenna, for the flake antenna of BX-5A1&WIFI controller is supposed to install to the outside of LED display screen
