BD815 / 2A, 64V, NPN
Kategori
Stok Kodu
EE16052023(I90)
Fiyat
1,00 USD + KDV
38,63 TL den başlayan taksitlerle!!
38,63 TL
BD815 / 2A, 64V, NPN ;
Material of transistor: Si
Polarity: NPN
Maximum collector power dissipation (Pc), W: 12
Maximum collector-base voltage |Ucb|, V: 64
Maximum collector-emitter voltage |Uce|, V: 64
Maximum emitter-base voltage |Ueb|, V: 5
Maximum collector current |Ic max|, A: 2
Maksimalna temperatura (Tj), °C: 150
Transition frequency (ft), MHz: 3
Collector capacitance (Cc), pF:
Forward current transfer ratio (hFE), min: 40
Noise Figure, dB:

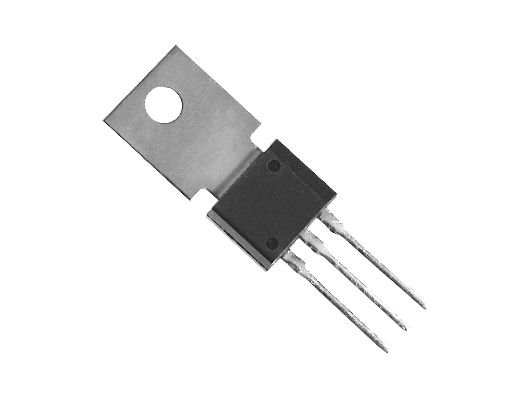

Package of BD815
transistor: TO202
